Network Topology

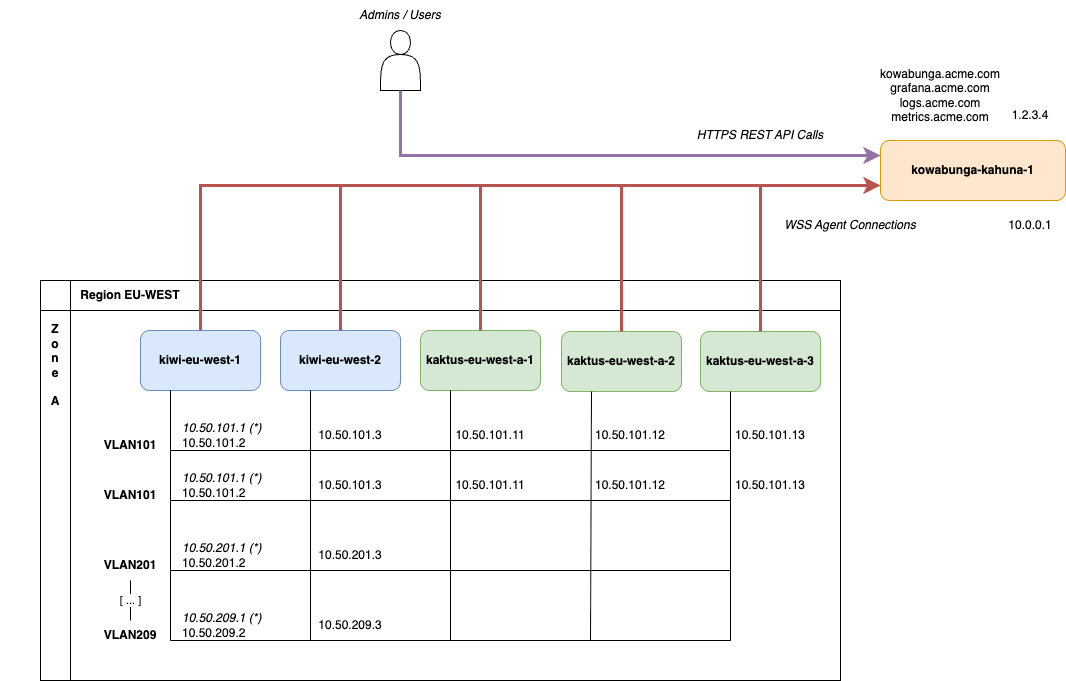

Let’s use this sample network topology for the rest of this tutorial:

We’ll start with a single Kahuna instance, with public Internet exposure. The instance’s hostname will be kowabunga-kahuna-1 and it has 2 network adapters and associated IP addresses:

• a private one, 10.0.0.1, in the event we’d need to peer further one with other instances for hugh-availability.
• a public one, 1.2.3.4, exposed as kowabunga.acme.com for WebUI, REST API calls to the orchestrator and WebSocket agents endpoint. It’ll also be exposed as grafana.acme.com, logs.acme.com and metrics.acme.com for Kiwi and Kaktus to push logs and and metrics and allow for service’s metrology.

Next is the main (and only) region, EU-WEST and its single zone, EU-WEST-A. The region/zone will feature 2 Kiwi instances and 3 Kaktus ones.

All instances will be connected under the same L2 network layer (as defined in requirements) and we’ll use different VLANs and associated network subnets to isolate content:

• VLAN101 will be used as default, administration VLAN, with associated 10.50.101.0/24 subnet. All Kiwi and Kaktus instances will be part of.
• VLAN102 will be used for Ceph backpanel, with associated 10.50.102.0/24 subnet. While not mandatory, this allows differentiating the administrative control plane traffic from pure storage cluster data synchronization. This allows for better traffic shaping and monitoring, if ever needs be. Note that on enterprise-grade production systems, Ceph project would recommend to use dedicated NIC for Ceph traffic, so isolation here makes sense.
• VLAN201 to VLAN209 would be application VLANs. Kiwi will bind them, being region’s router, but Kaktus don’t. Instantiated VMs will however, through bridged network adapters.
